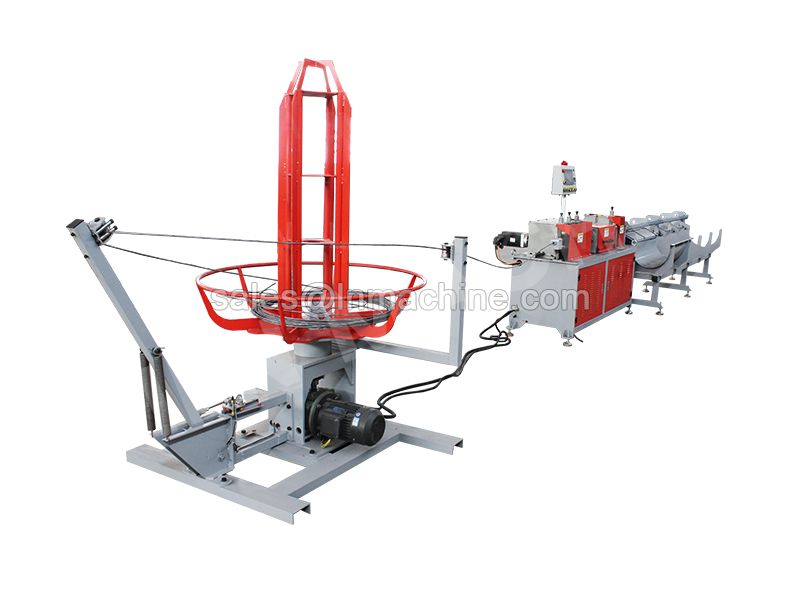

Wire Straightening and Cutting Machine

It special suitable for Wire Mesh Welding Line, Usually applied for construction technology and building operation. The machine adopts PLC control, with servo cutting, has simple and reliable operation and adjustment. Realized automatic scale, not need artificial regulation. The machine is unique in China.

Advantages:

1. High-efficiency.

2. High precision, cut off length error less than 3mm.

3. PLC Control, touching operation and fault display function.

4. Straightening Range,wire range according to your require.

5. Low Failure Rate, according to process precision processing strictly to ensure long time trouble-free operation.

Inquire Now Next Product

Parameter

Wire diameter (mm)	3-6	4-8	5-12	8-14	8-16	12-20
Working speed (m/min)	Max 120	Max 120	Max 130	Max 130	Max 130	Max 60
Power (Kw)	4+1.5+2.6+2	11+3	30=7.5	37+7.5	45+7.5	30+18.5
Straightness Accuracy	±1mm	±2mm
