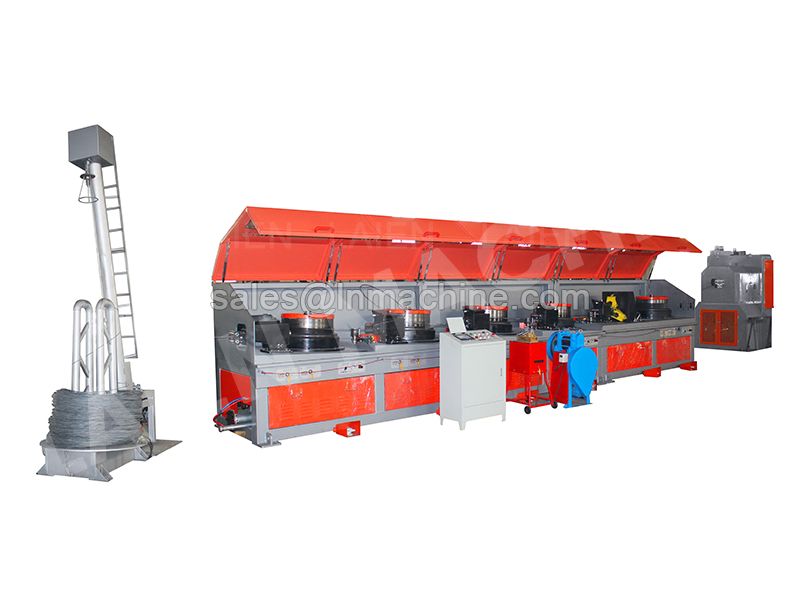

This type of machine under finished product line has high quality, smooth surface and thickness Evenly, which take good cooling system, water cooling and air cooling, good quality high reliability, low shutdown. This type of machine uses PLC+ frequency conversion speed regulation, convenient operation.
Structure includes hydraulic pay-off, brushes descaler, main blocks, hydraulic take-up machine. Detail pat can be design and require by your detail need.
Common models of wire drawing machine include pulley wire drawing machine, straight line wire drawing machine, water tank wire drawing machine and soon.lt is Suitable for drawing materials with welding rods, welding wires, steel wires, wires, cables, alloys and other metal wires.
Usage:
Wire drawing processing for high, medium and ow carbon steel wire, stainless steel wire, copper wire, alloy copper wire, aluminum alloy copper wre. Etc
Advantage:
1. Water cooling reduces the heat generated in the drawing process and reduces Mold loss, improve wire quality.
2. High quality of finished line, smooth surface, thickness uniform.
3. Tungsten carbide spray the drums, long service life
4. High speed with inverter speed adjustable
Parameter
| Model | LSJ9-800 | LSJ9-700 | LSJ9-600 | LSJ9-400 |
| Drum Dia./mm | 650 | 550 | 500 | 400 |
| Drawing Passes/time | ≤12 | ≤12 | ≤12 | ≤14 |
| Max. Inlet Wire Dia./mm | 8 | 8 | 6.5 | 3.8 |
| Min. Outlet Wire Dia./mm | 1.8 | 1.8 | 1.8 | 0.75 |
| Drawing Speed/ m/min | Max 12 | Max 12 | Max 12 | Max 15 |
| Inlet Wire Strength/kg/mm2 | ≤1300 | ≤1300 | ≤1300 | ≤1300 |
| Motor Power/kW | 30-65 | 22-30 | 18.5-22 | 11-15 |
| Remark | We Can Customize According to Different Requirements of User | |||
