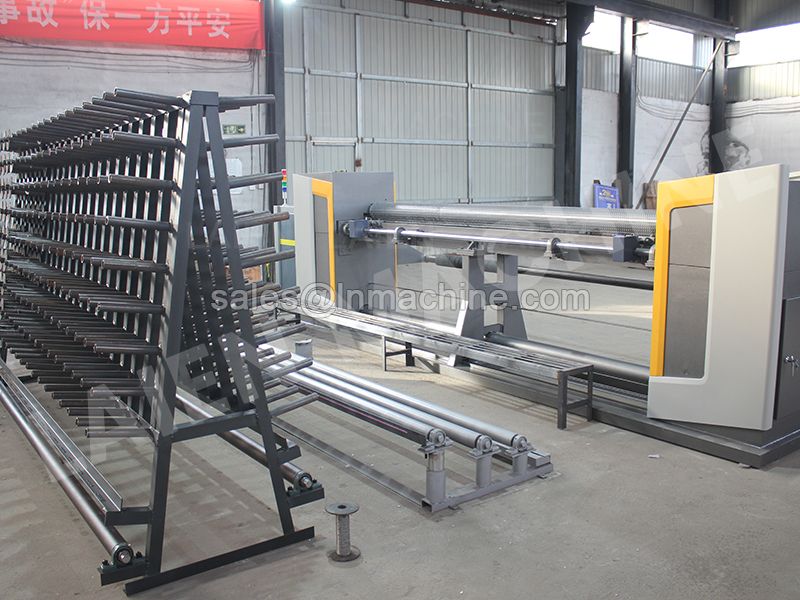

Hexagonal wire mesh machine is an automated equipment specially designed for weaving hexagonal metal mesh, commonly used in gabion mesh, poultry cages, and protective fencing. With advanced control systems and weaving technology, the machine ensures stable and efficient production of various mesh specifications. It is widely applied in agriculture, construction reinforcement, slope protection, and hydraulic engineering. Key advantages include high weaving speed, uniform mesh size, easy operation, and low maintenance cost, making it an ideal choice for mesh manufacturers.
Parameter
| Model | Wire diameter(mm) | Hole size(mm) | Max mesh width(mm) | Output | Dimensions(LXWXH) mm | Weight(T) | |
| Mesh/min | m/h | ||||||
| ZJ1/2 | 0.4-8 | 16 | 3300/2600 | 80 | 70-80 | 4500x2200x1450 | 4.6 |
| ZJ3/4 | 0.38-0.9 | 20 | 3300/2600 | 70-75 | 105-112 | 4500x2200x1450 | 4.6 |
| ZJ1 | 0.38-1.2 | 28 | 3300/2600 | 70 | 126 | 4500x2200x1450 | 4.6 |
| ZJ1.2 | 0.45-1.5 | 32 | 3300/2600 | 60-70 | 162-189 | 4500x2200x1450 | 4.6 |
| ZJ1.5 | 0.5-1.5 | 40 | 3300/2600 | 60-70 | 189 | 4500x2200x1450 | 4.6 |
| ZJ2 | 0.7-2.2 | 57 | 3300/2600 | 60 | 70-80 | 4500x2200x1450 | 4.6 |
| ZJ3 | 0.7-2.5 | 86 | 3300/2600 | 50 | 105-112 | 4500x2200x1450 | 4.6 |
