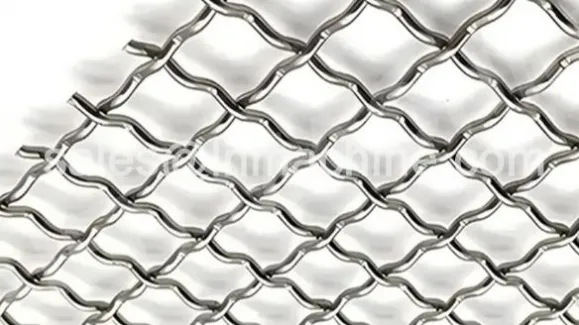

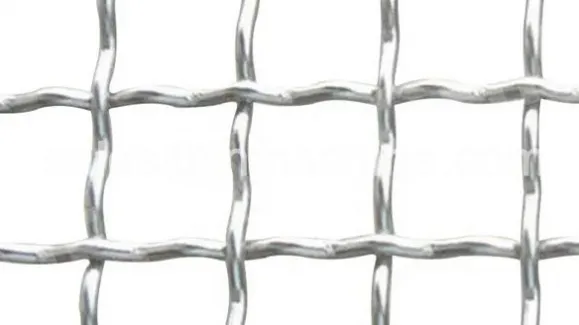

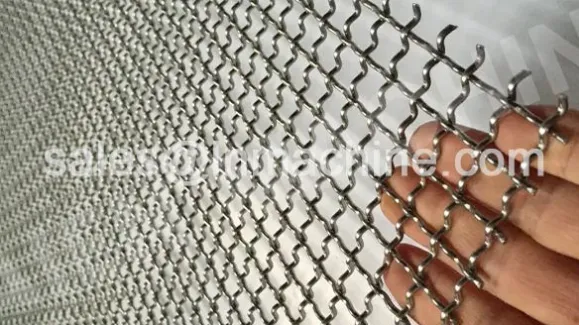

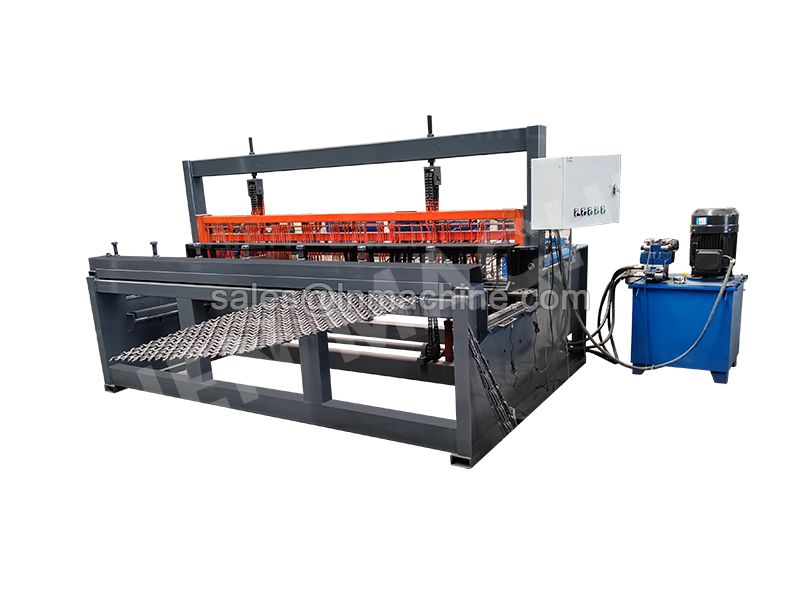

Crimped Wire Mesh Machine is a mechanical equipment specially used for producing crimped wire mesh. Crimped wire mesh is a mesh product made of metal wire through pre-crimping (bending or embossing) and interweaving, with the characteristics of uniform mesh, stable structure and high strength. Crimped wire mesh machine can achieve high-precision and high-efficiency production by crimping and interweaving metal wire.
With the increasing demand for industrial automation and refined production, crimped wire mesh machine is developing towards high efficiency, intelligence and multi-function. Its wide application in screening, decoration, protection and other fields makes it an indispensable production equipment in many industries.
Parameter
| Model | YHWJ-C | YHWJ-H |
| Max Mesh width | 4000mm | 4000mm |
| Mesh hole size | 3*3-100*100mm | 20*20-100*100mm |
| Wire diameter | 2-6 | 5-14 |
| Production speed | 30times/minute | 20times/minute |
| Rated voltage | 380v,50hz | 380v/50hz |
| Motor power | 6kw | 11kw |
| Dimension | 5500*2200*1700 | 5500*3000*1200 |
| Weight | 2.5T | 3T |
