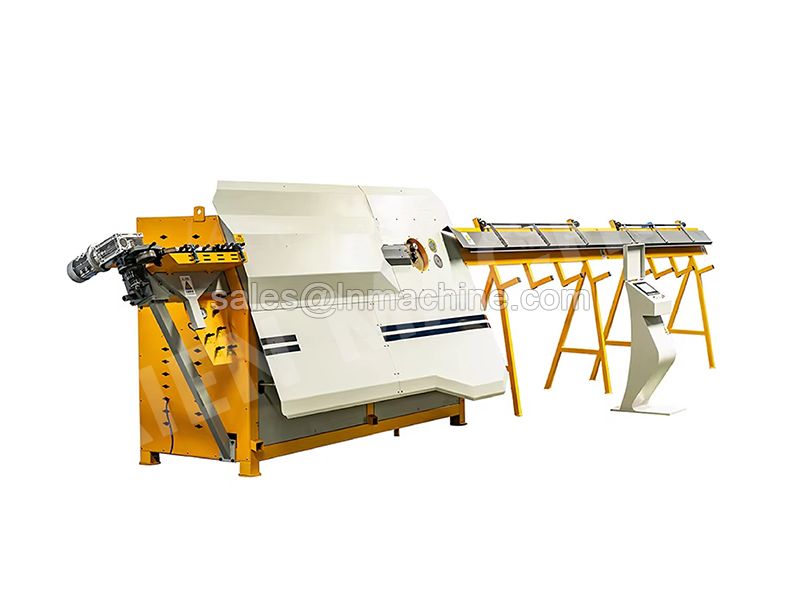

CNC stirrup bender can automatically complete the straightening, lengthening, bending and cutting of steel wire, so that it can save time, labor and materials. With high processing precision and efficiency, it can realize fully automated, uninterrupted assembly line for steel wire processing . the machine is widely used in railways, highways bridges, real estate, large-scale wire processing plants and other fields.
Parameter
Advantage
Application
| MODEL/ | GWG-10D | GWG-12C | GWG-14C | GWG-16B |
| Single wire | 5-10ribbed | 6000mm | 6000mm | 4000mm |
| 5-12 plain | 50-500mm | 340-1000mm | 400-1200mm | |
| Double wire | 5-8 ribbed | min0.1mm | min0.2mm | min0.2mm |
| 5-10 plain | 6-30r/min | 6-30r/min | 6-30r/min | |
| (mm)Sizing accuracy | ±1 | ±1 | ±1 | ±1 |
| (°)Bending accuracy(°) | ±1 | ±1 | ±1 | ±1 |
| (m/min)Max traction speed | 100 | 110 | 110 | 75 |
| (°)Max bending angle | 135° single direction | 180° bidirectional | 180° bidirectional | 180° bidirectional |
| (/sec)Max bending speed | 1000 | 1200 | 1200 | 1000 |
| KWTotal power | 17 | 31.5 | 31.5 | 55.6 |
Saving resources: Steel bar bending machines can help companies save the use of raw materials such as steel bars and reduce waste.
Improve product accuracy: Intelligent control system makes the machine operation more stable and reliable, avoiding errors
Improve production efficiency: The hoop bending machine can automatically complete the bending work and greatly improve production efficiency while ensuring quality.

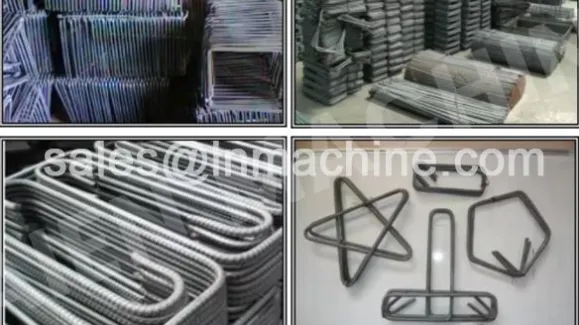

Hoop bending machines are widely used in the construction industry to process steel bars, especially in large projects such as high-rise buildings, bridges and tunnels. Hoop bending machines can bend steel bars quickly and accurately.
In addition, it is also widely used in infrastructure construction. In roads, railways and water conservancy facilities, a large amount of steel bars are required as supporting materials. Hoop bending machines play an important role in these infrastructure construction projects.
