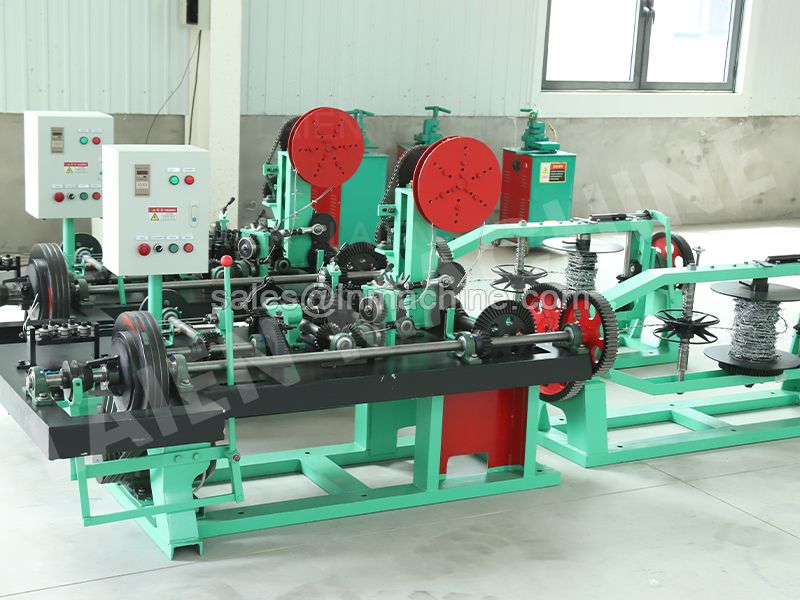

Barbed Wire Machine

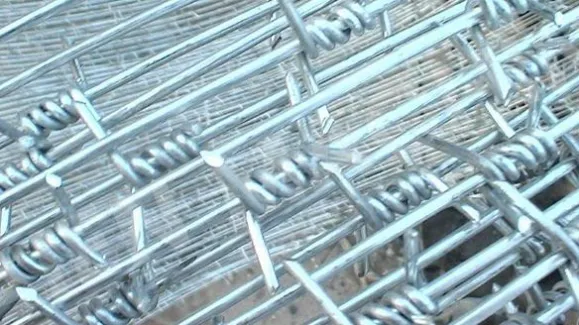

This machine can produce barbed wire, barbed wire fence which is widely used in national defense, military, railway, highway, agricultural, animal husbandry and other industries. The materials can be hot dipped galvanized wire, electric galvanized wire, PVC coated wire etc.

Model:

The barbed wire machine have three models: CS-A Double Twisted Barbed Wire Machine, CS-B Single Twisted Barbed Wire Machine, CS-C Reverse Double Twisted Barbed Wire Machine

Inquire Now Next Product

Parameter

The Application or The Barbed Wire

Machine Model	CS-A	CS-B	CS-C
Type Of Products	Double Twisted	Single Twisted	Reverse Double Twisted
Voltage	3 Phase / 220V /380V/415V /440V/ 50Hz/ 60Hz
Power	3KW	2.2KW	2.2KW
Productivity	100-200 Kgs/h	60-100 Kgs/h	100-200 Kgs/h
Barb Space	3'' 4'' 5'' 6'' 7'' As Required
Strand Wire Diameter	1.8-3.0mm	1.6-2.6mm	1.5-2.8mm
Barb Wire Diameter	1.7-2.8mm	1.6-2.2mm	1.5-2.6mm
Wire Materials	Carbon Steel Wire, Galvanized Steel Wire, PVC Coated Wire, Stainless Steel Wire

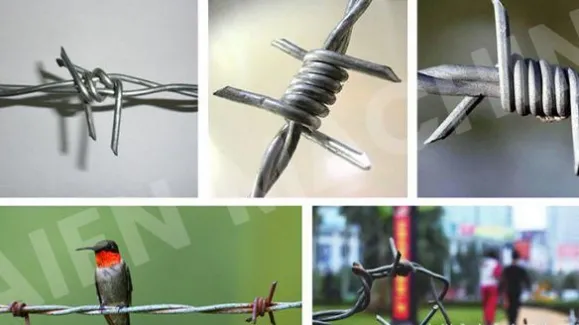

Barbed wire is widely used in banks, and living quarters, private houses, villas, doors and windows, highways, railway guardrails, and border lines to protect security.
